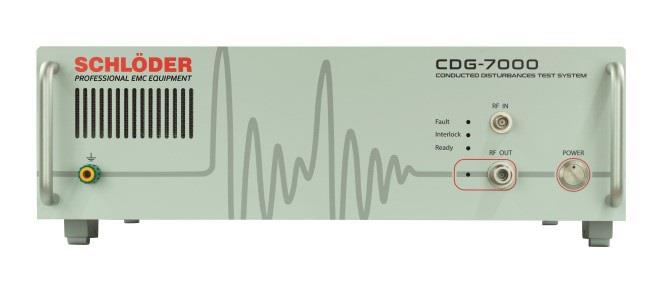

RF-Power Amplifier

25 W

75 W

75 W / 10k

Frequency range

100 kHz-250 MHz

100 kHz-400 MHz

10 kHz-250 MHz

Output Power:

Nominal

25 W

75 W

75 W

Linear @ 1dB compression

20 W

50 W

50 W

Gain

46 dB nominal

51 dB nominal

51 dB nominal

Flatness

± 1.5 dB maximum

± 1.5 dB maximum

± 1.5 dB maximum

Input power for rated output

1 mW / 0 dBm

1 mW / 0 dBm

1 mW / 0 dBm

Input / output impedance

50 Ω

50 Ω

50 Ω

Input VSWR

1.5 : 1 max.

1.5 : 1 max.

1.5 : 1 max.

Harmonic distortion

< -20 dBc @ 20 W

< -20 dBc @ 50 W

< -20 dBc @ 50 W

Noise figure

typ. 5 dB

typ. 7 dB

typ. 7 dB

Spurious output

< -75 dBc at 10 W

< -75 dBc at 10 W

< -75 dBc at 10 W
